Product Overview

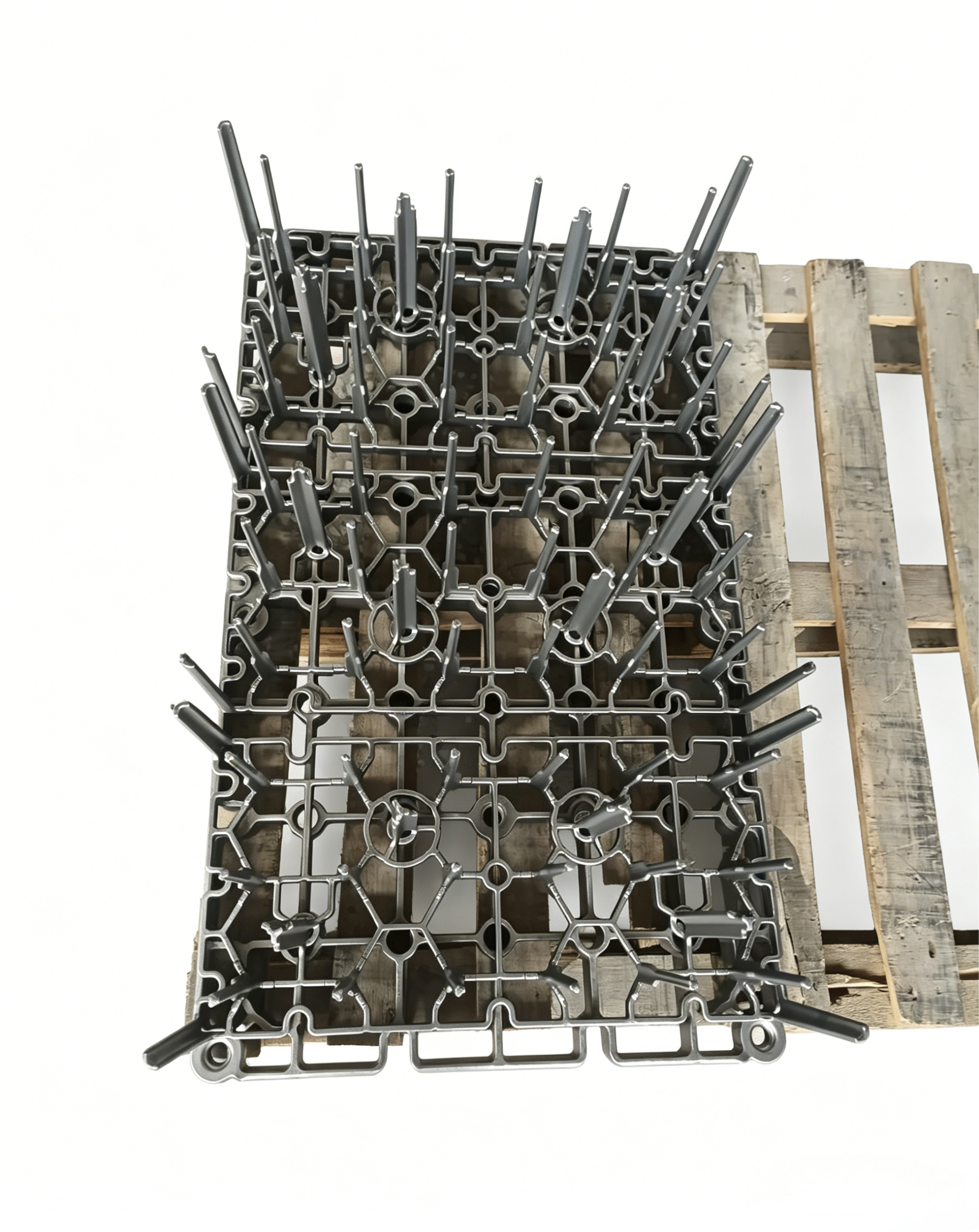

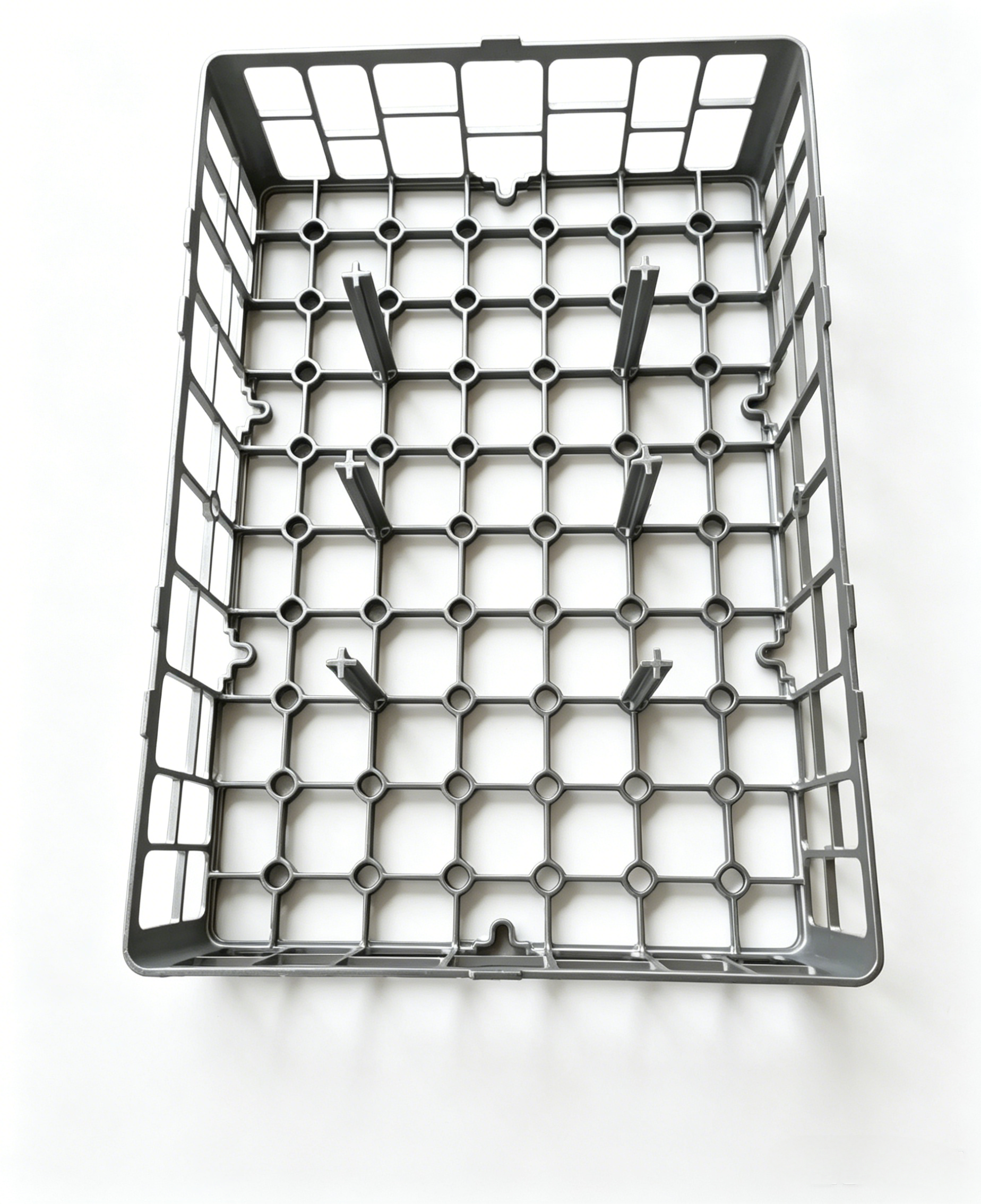

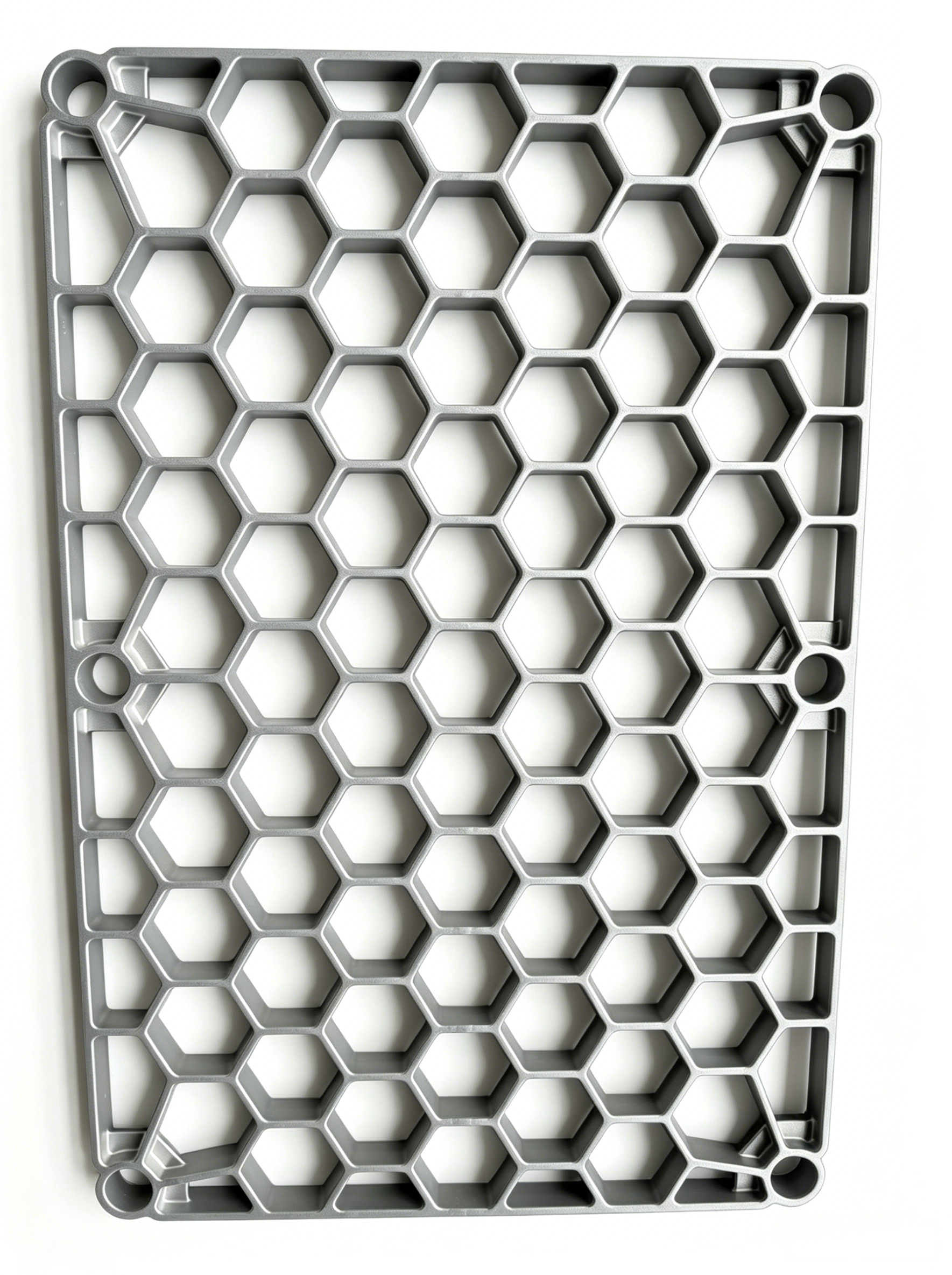

Our Carburizing Furnace Fixture is professional high-temperature heat treatment tooling 100% cast by ASTM A297 heat-resistant steel. It is specially developed for severe working conditions of high-temperature carburizing, carbonitriding and thermal cycling in industrial furnaces. Adopting premium lost wax investment casting process, the fixture features integrated one-piece forming, no welding seam, high structural stability and long service life, which perfectly solves the problems of deformation, cracking and short service life of traditional welded fixtures.

Material Information (ASTM A297 Standard)

Standard:ASTM A297 heat-resistant cast steel
Optional Grade: HF (19Cr9Ni), HK (25Cr20Ni), HP (26Cr35Ni)
Material Advantage: High chromium and nickel alloy formula provides excellent anti-carburizing, anti-oxidation and high-temperature creep resistance under 950℃-1250℃ continuous high temperature.

Production Technology

Made by Lost Wax Casting / Investment Casting (Inversement Casting). Precision casting process ensures dense internal structure, smooth surface, no porosity and no sand holes. Compared with ordinary welding and forging parts, it has better thermal fatigue resistance and overall rigidity.

Product Features

• Integral casting structure, not easy to deform at high temperature

• Excellent carburization resistance, suitable for long-term carburizing furnace working environment

• Uniform wall thickness, stable dimensional tolerance, good repeatability

• Optimal airflow design, uniform heating of workpieces

• High temperature resistance, oxidation resistance and long service life

Materials we can produce

Application Range

Widely used in industrial carburizing furnace, carbonitriding furnace, continuous heat treatment line, high-temperature quenching and tempering production.
